Worm Institute for Research and Medicine

The Worm Institute for Research and Medicine (WIRM), led by Professor Kim D. Janda, was established in 2005 through a generous donation from philanthropist John J. Moores who had a long-time interest in worm-carried (filarial) conditions. In 1989, he had founded the River Blindness Foundation (later absorbed into The Carter Center of Atlanta where he had served on the Board of Trustees beginning in 1994) to distribute a treatment for that disease in developing countries, mainly in sub-Saharan Africa. Mr. Moore’s gift to Scripps Research has enabled our researchers to focus their work on parasitic worm-borne diseases and potential therapeutics for millions of people.

WIRM scientists have focused their efforts on two important neglected tropical disease (NTD) research areas: The first involves the development of a diagnostic toolbox for public health practitioners in the tropical disease field to detect effectively and efficiently the presence of parasitic worms in a person’s body. The goal being to translate these discoveries into unique approaches for both monitoring disease progression and ultimately elimination of filarial infections throughout the world. The second goal is to find new transformative drugs in the global health fight against diseases in developing countries. Here we hope to bring life-changing new drugs to countries affected by neglected disease where the market-driven models have failed.

One neglected disease WIRM investigators have tackled is associated with the nematode, or worm, that causes onchocerciasis, one of the world’s leading causes of blindness. Onchocerciasis is often referred to as “river blindness,” because it occurs in areas close to fast flowing water where flies transmitting the parasite, a tiny worm called Onchocerca volvulus, like to lay their eggs. In severe cases, the worms cause lesions and massive inflammation in the eyes of the infected person, leading to vision problems and ultimately blindness. According to the Carter Center, approximately 20 million people are infected with the parasite that causes onchocerciasis, with more than 240 million at risk of the disease in sub-Saharan Africa, Latin America, and Yemen. River blindness can be treated effectively with the drug ivermectin that has been used for four decades now. However, there is still a need to find ways to prevent, control and ultimately eliminate the disease.

In addition to O. volvulus, WIRM researchers have been targeting several other organisms including:

• Brugia-malayi, Mansonella streptocerca and Wuchereria bancrofti — three threadlike worms that infect some 120 million people worldwide. These parasites lodge in lymphatic tissue and cause a disease known as lymphatic filariasis, a debilitating and disfiguring illness that causes elephantiasis, a disease characterized by severe swelling in the limbs and genitals.
• Dracunculis medinensis — a worm spread through unclean water that can grow to be several feet long in the body and causes the painful disease dracunculiasis, or Guinea worm disease.
• Schistosoma mansoni — a worm carried by freshwater snails, which causes the disease schistosomiasis, affecting some 200 million people worldwide.
• Dirofilaria immitis — a heartworm spread by mosquitoes that infects dogs and is common in the United States.

To develop more effective as well as inexpensive diagnostic tools for these diseases as well as more efficient treatments, a thorough understanding of the individual nematodes is required. However, as those afflicted with these ailments are primarily found in developing countries, the greater scientific community has not given these diseases much attention. WIRM aims to fill this gap and tackle some of the most challenging problems facing filarial parasitology today.

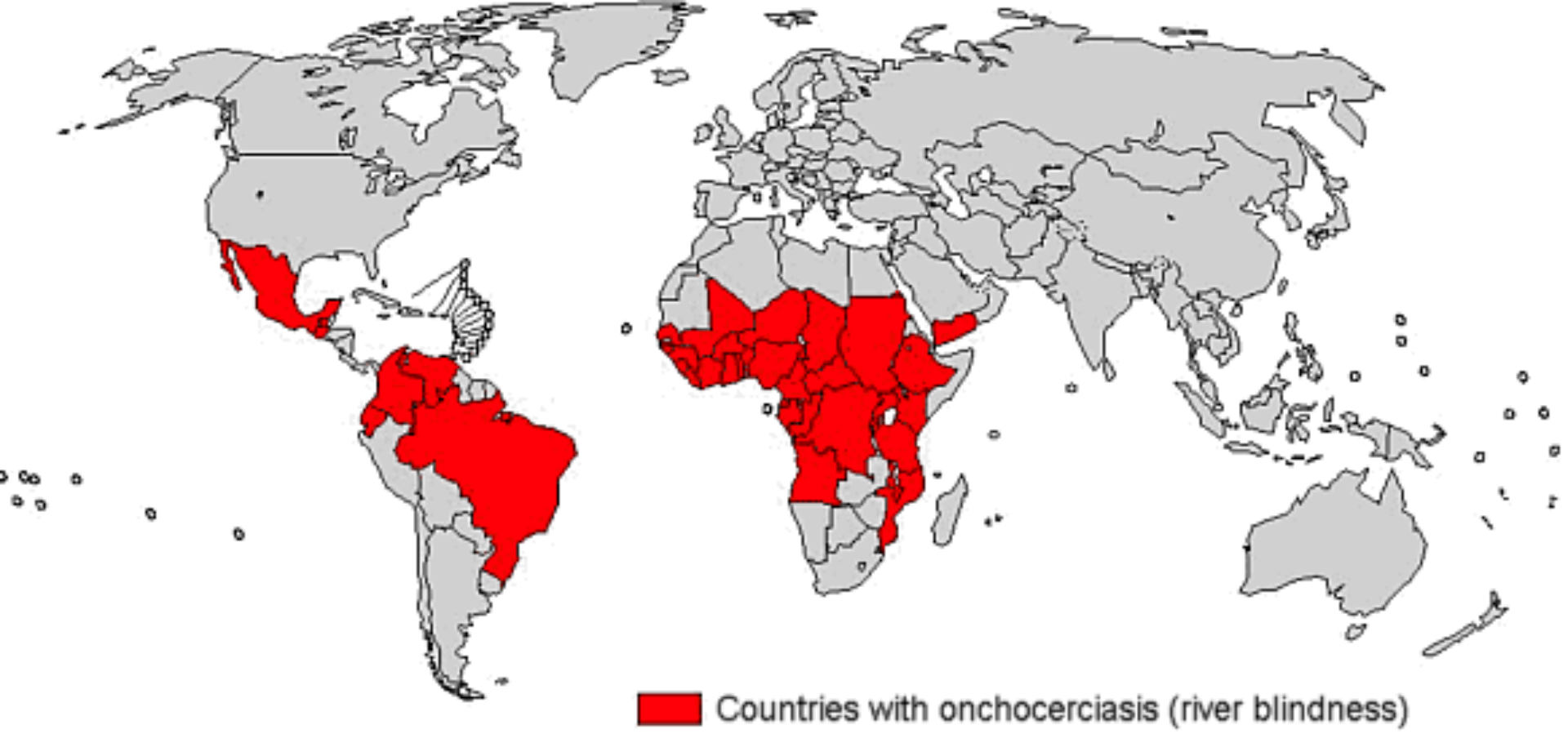

As stated, vide supra, the filarial disease onchocerciasis, commonly referred to as “river blindness,” affects approximately 25 million people in Africa, Central and South America, and Yemen, with more than 240 million at risk, and is the second most common cause of preventable blindness in sub-Saharan Africa. Approximately 99 percent of O. volvulus infections occur in 31 countries in Africa with the remaining 1 percent found in six countries of the Americas, and Yemen on the Arabian Peninsula (Figure 1).

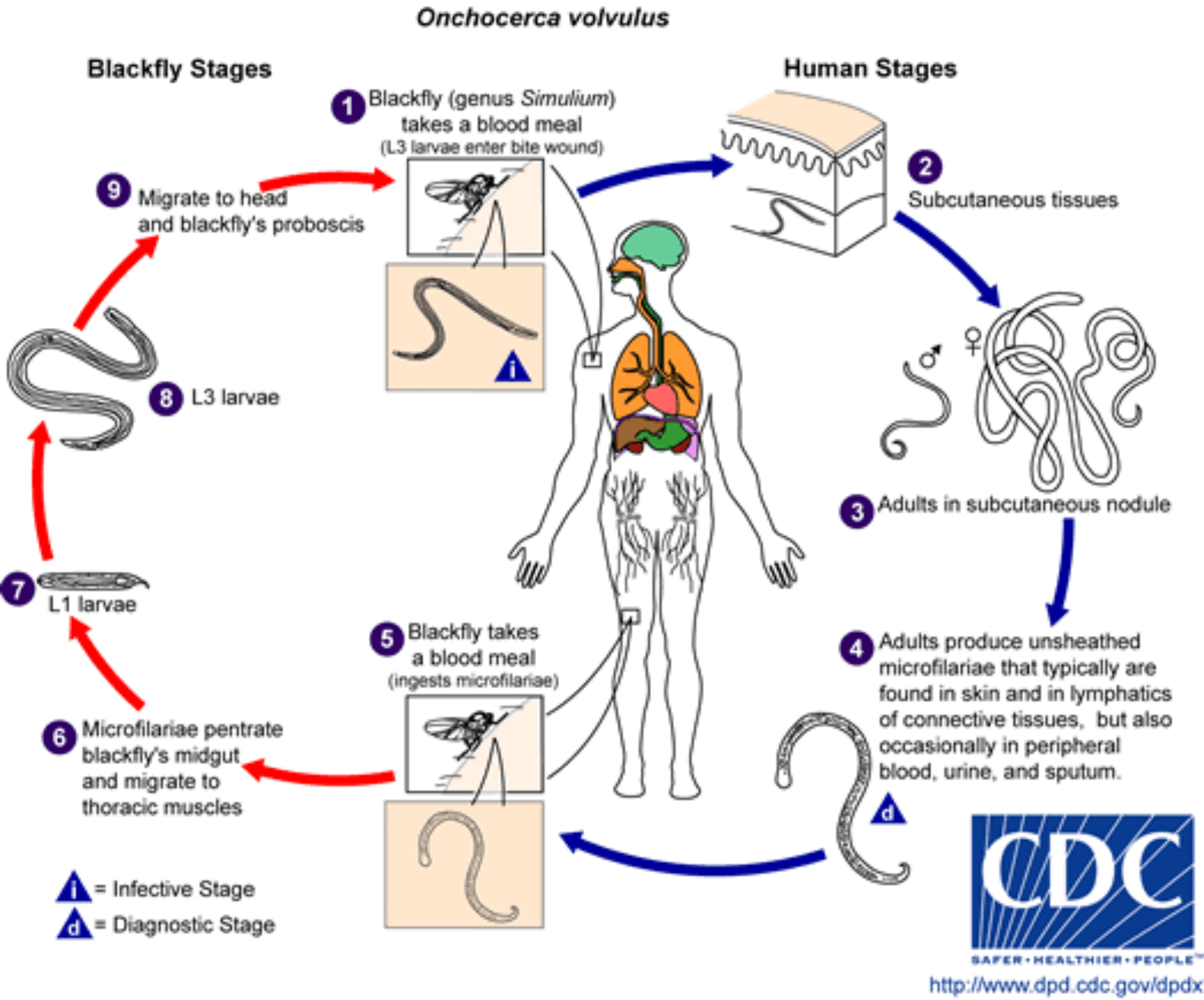

Symptoms of the disease include acute dermatitis and blindness, the result of which is the loss of 1 million disability-adjusted life years (DALYs) annually. The causative agent, the filarial nematode Onchocerca volvulus, is transmitted in its larval stage between human hosts through the bite of a Simulium (sp.) black fly (Figure 2).

Onchocerciasis and other NTDs are generally classified as a group of medically disparate diseases afflicting the poorest people of the world’s developing nations and resulting in acute illness, long-term disability and early death. Estimates attribute 12 of the NTDs together as causing 162,000 deaths annually with 14.8 million years lost to disability, causing a total burden of 19 million DALYs. Diagnostic tools currently in use for the detection of the NTDs are insufficient for measuring the extent of infection, making it difficult to distribute the appropriate therapies to those who need them. Within WIRM, we have applied state-of-the-art mass spectrometric–based metabolomic technologies in the creation of diagnostic tests for identifying and classifying these diseases by uncovering unique biomarkers in infected patients. In addition to serving a diagnostic purpose, these relevant biomarkers could be a valuable means of understanding the complexity of pathogenic infection and may serve as chemical leads for therapeutic development.

Through onchocerciasis control programs in Africa (OCP, 1974-2002; APOC, 1995-2015) and the Americas (OEPA, 1992-2012) conducting mass treatments with ivermectin, infection rates have been curbed. But the goal of eliminating and eradicating onchocerciasis, and NTDs in general, remains and is contingent upon continued surveillance of the disease. It ultimately depends upon the ability to measure and track the progress of disease elimination and recrudescence. Thus, at WIRM we see advantages of our metabolomics-based diagnostics over onchocerciasis diagnostics currently implemented, including sensitivity, reproducibility, invasiveness, and the potential for multiplexing with biomarkers for other filarial and/or neglected tropical diseases.

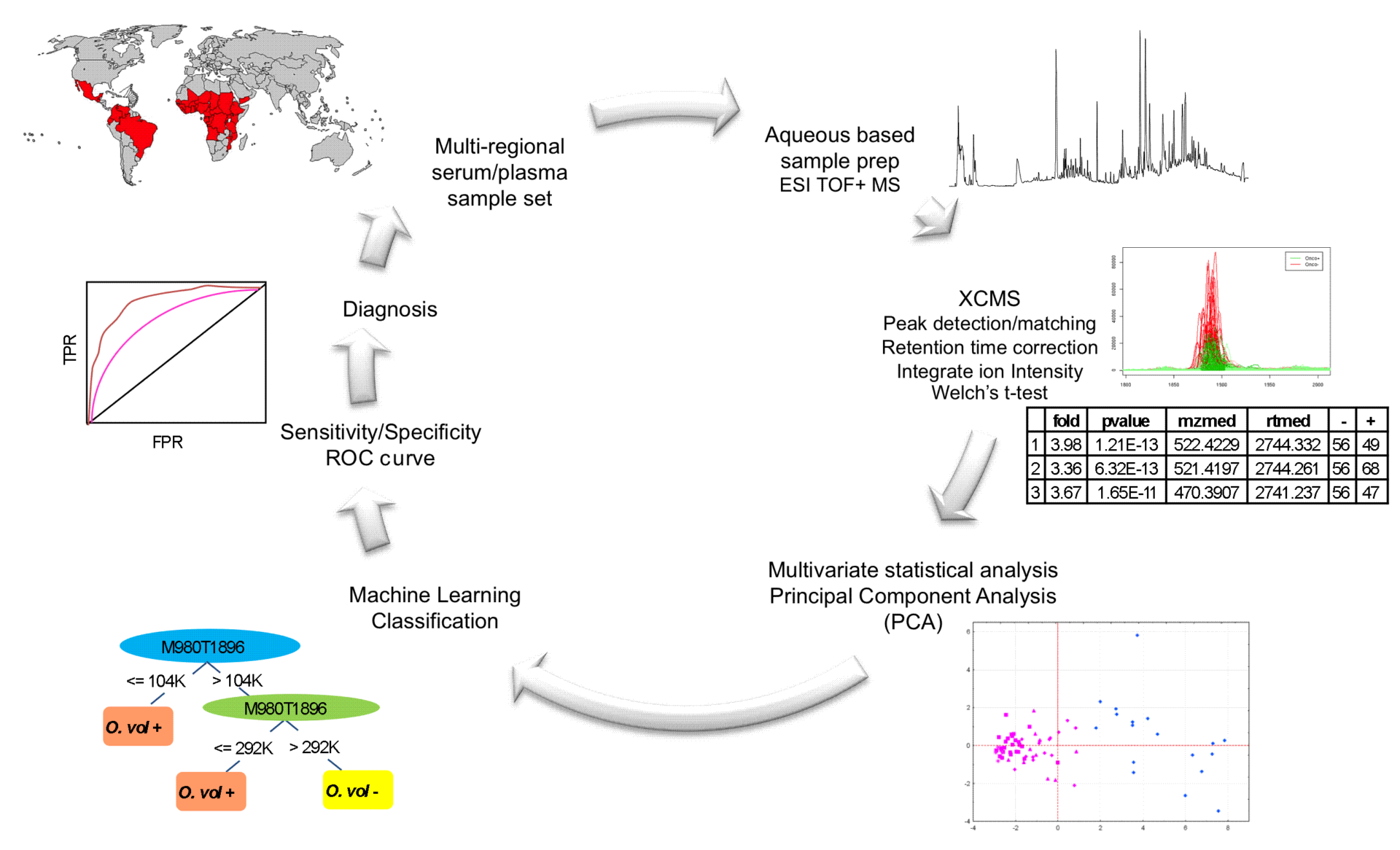

In the discovery phase of WIRM’s research, the analysis of serum, plasma and urine samples from African patients have been analyzed. However, it was from urine samples that a unique biomarker was ultimately found that showed excellent discrimination between Onchocerca volvulus–positive and -negative individuals by liquid chromatography-MS-based urine metabolome analysis (Figure 3). This unique biomarker, N-acetyltyramine-O,β-glucuronide (NATOG), is a neurotransmitter-derived secretion metabolite from O. volvulus. Moreover, the regulation of this tyramine neurotransmitter was found to be linked to patient disease infection, including the controversial antibiotic doxycycline treatment that has been shown to both sterilize and kill adult female worms. Further clues to its regulation have been elucidated through biosynthetic pathway determination within the nematode and its human host. In sum, these results demonstrate that NATOG tracks O. volvulus metabolism in both worms and humans and thus can be considered a host-specific biomarker for onchocerciasis progression.

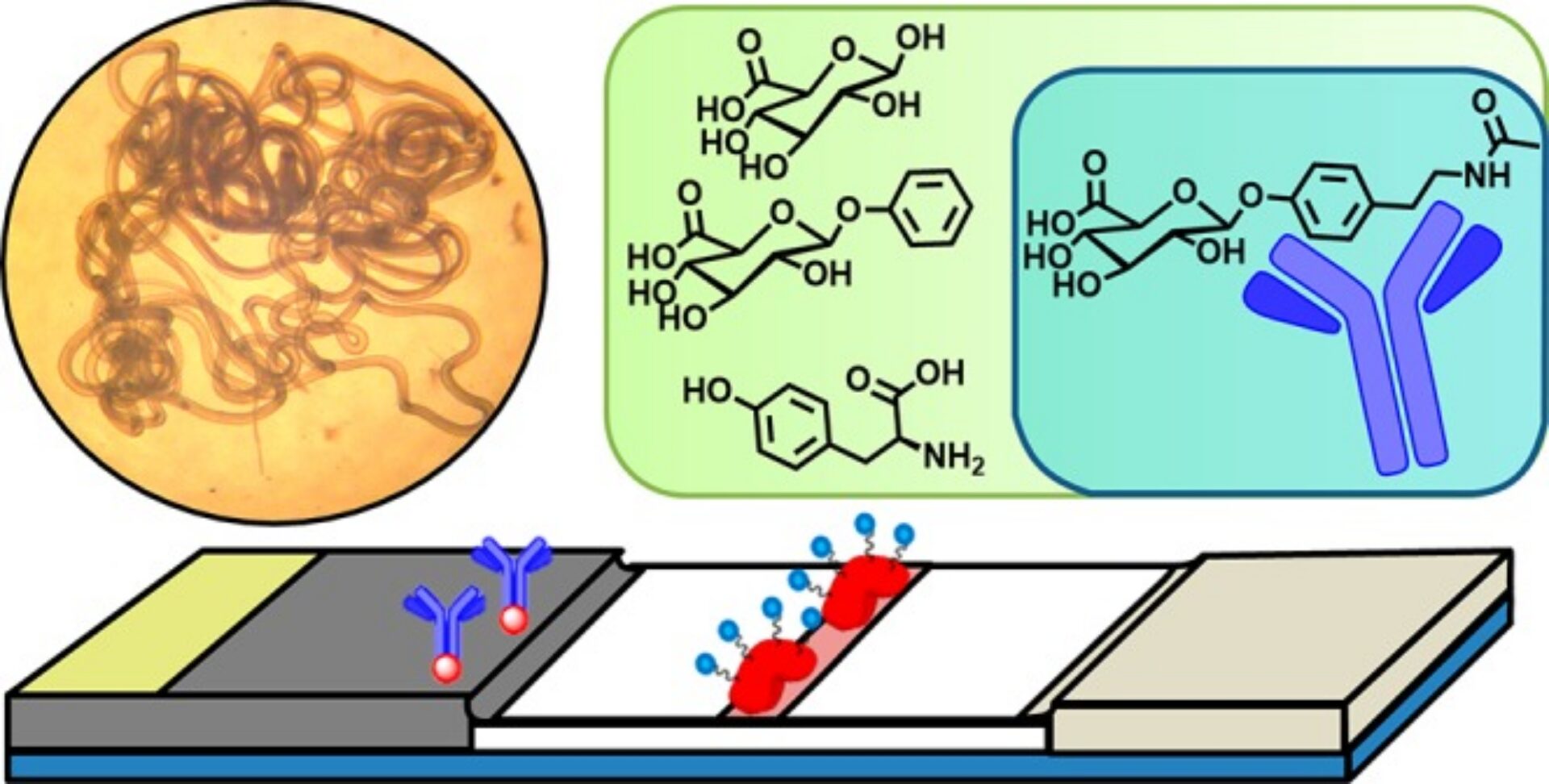

To follow up with these studies and keep within WIRM’s mission, a “dipstick” test was contemplated. This dip-stick test or lateral flow assay is predicated upon the ability of NATOG to distinguish between active and past infection, and it overcomes the limitations of antibody biomarkers and PCR methodologies. The importance of this lateral flow immunoassay (LFIA) (Figure 4) is that it offers the versatility and simplicity to be employed in the field and is inexpensive enough to be utilized in large-scale screening efforts. Moreover, the development and assessment of this NATOG-based urine LFIA for onchocerciasis accurately identified 85% of analyzed patient samples.

In sum, the efforts of WIRM using liquid chromatography-MS–based urine metabolome analysis not only has broad implications for a noninvasive host-specific onchocerciasis diagnostic but provides a basis for the metabolome mining of other neglected tropical diseases for the discovery of distinct biomarkers and monitoring of disease progression.

NTDs affect over one billion people worldwide. Despite the gravity of such diseases on human health, the pharmaceutical industry has largely ignored the development of chemotherapies for NTDs. The massive deficit in global efforts stems mainly from the fact that these diseases affect poor people in poverty-stricken regions of the world, and as such are not viewed as viable target markets for the pharmaceutical industry. However, more recently, many governmental, private sector and philanthropic organizations have begun to inject new funds into this area of research.

As part of this renewed effort in drug discovery for NTDs, another objective of WIRM has been to identify potential therapeutic targets relevant to such diseases. Hand-in-glove with our diagnostic efforts against helminth diseases, we have focused our labors upon Onchocerciasis. Currently, the only drug available for mass treatment of Onchocerciasis is Ivermectin (Mectizan®, Merck). However, this drug is ineffective against adult worms, and drug resistance appears to be emerging. Thus, there is a crucial need to identify new drug targets and agents that effectively treat Onchocerciasis.

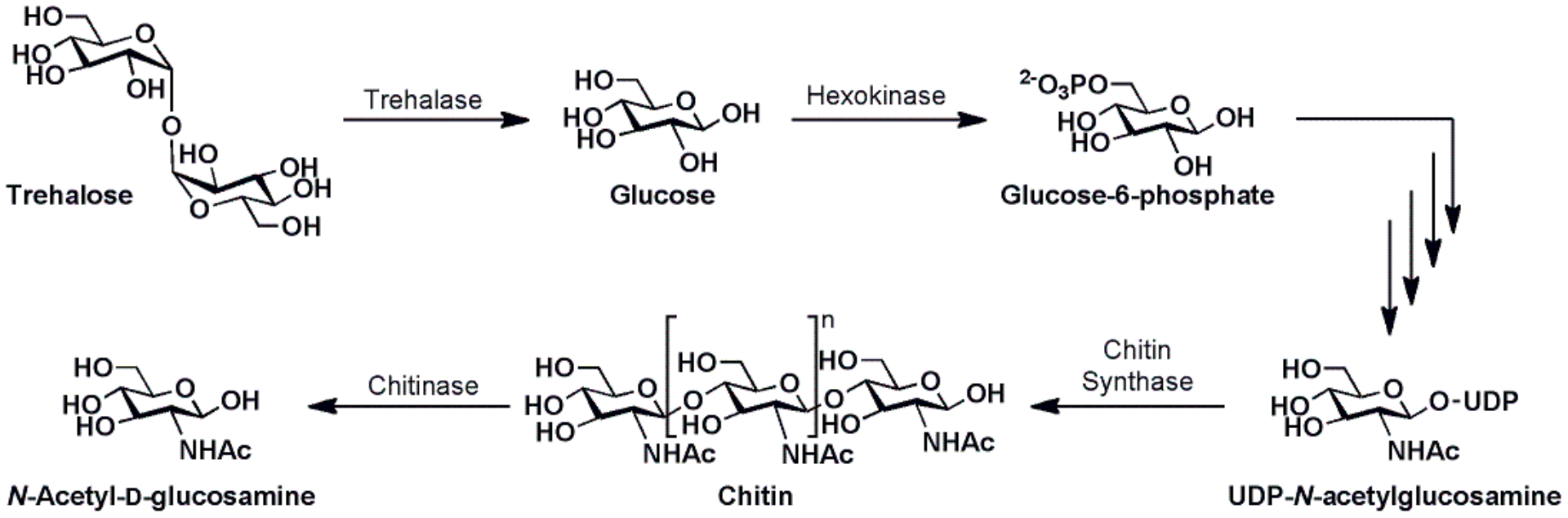

As an untapped pathway with potential therapeutic relevance against O. volvulus, WIRM has focused on chitin metabolism. Chitin, one of the most widespread amino polysaccharides in nature, is a major structural component of arthropod exoskeletons, fungal cell walls, and the microfilarial sheath and eggshells of parasitic nematodes. However, it is entirely lacking from vertebrates. The dynamic biosynthesis and degradation of chitin is crucial for the growth and development of these organisms and is regulated by two classes of enzymes, chitin synthases and chitinases (Figure 5). To date, only one chitinase from O. volvulus has been identified. OvCHT1 is expressed only in the infective L3 larvae and is stored within the granules of the cells of the esophageal glands until post-infective development, after which it is secreted and found mostly in the cuticle or outer body covering. Although its exact mechanism is not clear, it was hypothesized to likely play roles in host transmission, ecdysis (molting) and remodeling of the L4 cuticle and casting of the L3 cuticle. Because of the critical nature of these processes in the lifecycle of the parasite, WIRM believes that probing of the chitin metabolism with small, drug-like molecules should provide valuable insights for the future development of this biochemical pathway as a therapeutic target in O. volvulus.

Although chitinases, in general, have been implicated in several human disease pathways, and many highly complex natural product inhibitors have been reported, similar to NTDs, drug discovery efforts toward these targets are sparse. In the NTD field, current drug discovery strategies include piggy-back discovery (e.g., the screening of libraries that are already being assayed for a similar molecular target in another disease), de novo drug discovery and drug repositioning. Due to the time- and cost-effective nature of drug repositioning, WIRM has taken this approach for the discovery of new anti-onchocerciasis agents.

Using the Johns Hopkins Clinical Compound Library (JHCCL), a collection of 1,514 known drugs, as a source of drugs to be repositioned, a high-throughput fluorescence-based assay was employed to screen for inhibitors of OvCHT1. From these screening efforts, one drug was discovered with potent inhibition against OvCHT1, the known veterinary anthelmintic drug closantel, with an IC₅₀ value of 1.6 ± 0.08 μM and a competitive inhibition constant (K_i) of 468 ± 84 nM (Figure 6). This compound was also found to be highly specific for filarial family 18 chitinases compared to those from protozoans and hCHTR. A significant finding was that closantel almost fully inhibited the L3 to L4 molt, and ultrastructural studies revealed an interesting closantel-induced phenotype in which the separation between the L3 cuticle and the newly formed L4 cuticle was inhibited and the cuticular material in between the cuticles was not fully degraded (Figure 6). Importantly, a similar phenotype has also been observed when L3 larvae were cultured with cysteine protease inhibitors or when the transcripts corresponding to O. volvulus cysteine protea ses or a serine protease inhibitor were knocked down using RNA interference. It is WIRM’s hope that closantel’s negative impact on molting could lead to new strategies for targeting the progression of O. volvulus larvae to adult worms, which cannot be destroyed with current therapeutics.

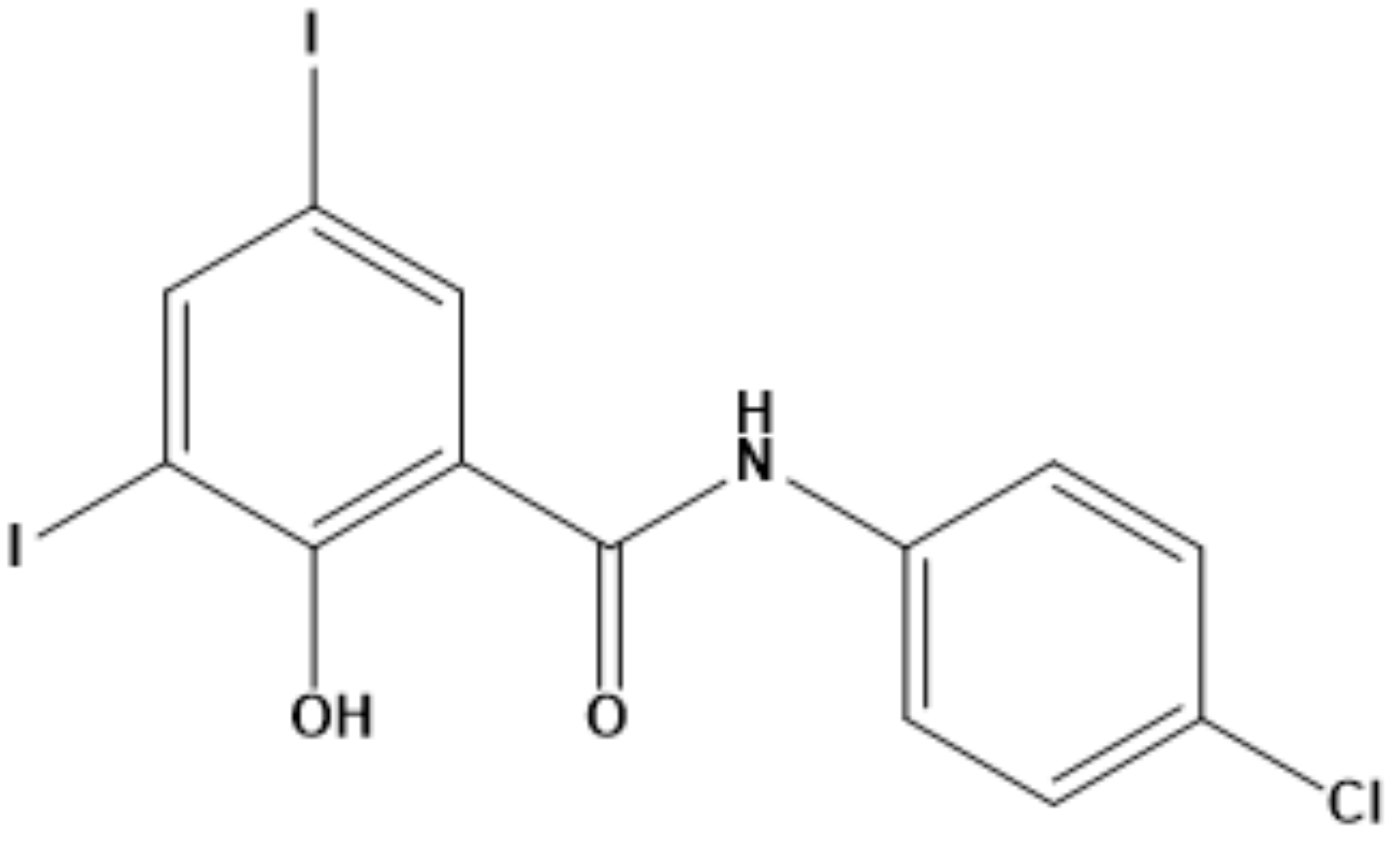

Closantel’s previously documented anthelmintic mode of action was thought to solely rely on its role as a proton ionophore, and its chitinase inhibitor activity was previously unknown, hence implicating a potential bimodal mechanism of action for its observed biochemical activity. With the newly discovered dual biochemical roles for closantel, WIRM initiated studies toward dissecting its activity-determining features. Using a “retro-fragment”-based approach, a compound was identified with a potency similar to closantel (IC₅₀ of 5.8 ± 0.3 μM) (Figure 7). Using this lead fragment and its analogues, WIRM has been investigating the exact required molecular features underlying the proton ionophore activity as well as the chitinase inhibitory activity to map out which molecular fragments are required for individual and/or dual activities.

Drugs for diseases in developing countries face critical challenges regarding access, R&D funding and quality. While over 1.7 billion people require treatment for NTDs, pharmaceutical research has historically focused on profitable, Western-market drugs, with less than 0.5% of global R&D funding targeting NTDs, despite them representing nearly 20% of the infectious disease burden. At WIRM, we are using our resources to find new therapeutics for NTDs in the context of health care needs.
